Product Overview

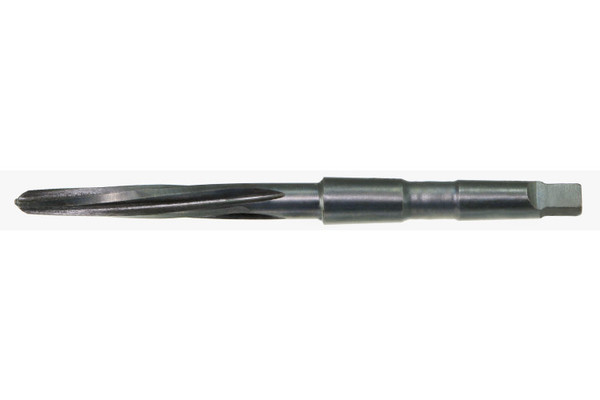

1-1/32,BRIDGE REAMER TAPER SHNK -4250
Commonly used on bridgework, ship construction and structural steel fabrication where extreme accuracy of diameter is important. Reamers have pilot type points for alignment purposes and easy entry into small and off-center holes.
Features
- Made with premium grade HSS to last longer
- Bridge length for longer or thicker workpieces
- Spiral flutes for faster chip ejection and cutting operation
- Morse taper shank for use with compatible arbours
- Tapered point for easy realignment of holes
- Made in USA
Applications
- Enlarging Holes in metal
- Aligning misaligned holes in metal
Specifications
| Drill Size | 1-1/32" |
| Finish | Black Oxide |
| Flute Design | Spiral Flute |
| Flute Length | 7-3/8" |
| Material Madeof | High Speed Steel |
| Morse Taper | 3 |
| Overall Length | 12" |
| Point Type | Tapered Point |
| Reamer Hex Diameter | N/A |
| Reamer Large End Diameter | N/A |
| Reamer Length | Bridge Length |
| Reamer Point Diameter | 47/64" |
| Reamer Safety Colar | No |
| Reamer Safety Magnet | No |
| Reamer Small End Diameter | N/A |
| Reamer Type | Construction Reamer |
| Sets | No |
| Shank Size | MT3 |
| Shank Taper Profile | Morse taper |
| Shank Type | Taper Shank |
