Product Overview

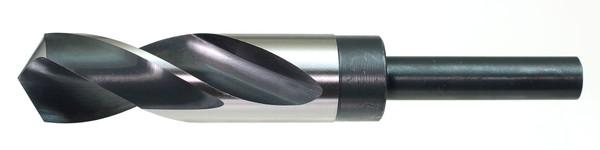

1-3/32,S&D DRILL 1/2" SHANK - 1000
1000 series S&D Drills expand the size range capacity of a 1/2" portable drill chuck. Common flute and overall length for minimal adjustment during tool changes. Ideal for drilling low and medium tensile strength materials.
Features
- 1/2" reduced shank for use in standard drill chucks
- 118° general purpose point
- Made with premium grade HSS to last longer
- black and bright surface treatment for higher lubricity
- Made in USA
Applications
- Drilling large diameter holes
- Drilling in low to medium strength materials
- Making holes with fixed spindle machines
Specifications
| Drill Size | 1-3/32" |
| Drill Size Equivalent | 1.0938" |
| Finish | Black & Bright |
| Flute Design | Spiral Flute |
| Flute Direction | Right hand |
| Flute Length | 3" |
| Flute Quantity | 2 |
| Material Madeof | High Speed Steel |
| Overall Length | 6" |
| Point Angle | 118° Point |
| Point Type | Conventional Point |
| Sets | No |
| Shank Size | 1/2" |
| Shank Type | Reduced Shank |
| System Of Measurement | Fractional |
