Product Overview

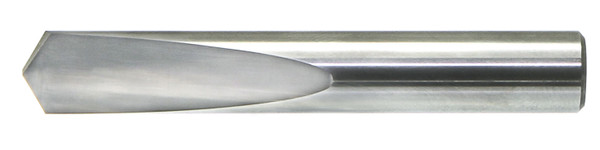

11/64 SOLID CARBIDE SPADE DRILL - 750
Solid Carbide spade drills perform well in hard to machine materials (up to Rc 60), high strength alloys, plastic, and glass. They can be used in thin sheet metal and spotting applications. Drilling depth should not exceed 2x the drill diameter.
Features
- Solid carbide construction for extreme rigidity and strength
- 118° conventional point for rapid penetration
- Flutes and core are designed for shallow hole drilling up to 2xD
- Bright finish for added lubricity
- Round shank
- Made in USA
Applications
- Drilling in very high strength materials like cast iron, steel, and bronze
- Drilling in sheet metal or spotting applications
Specifications
| Drill Size | 11/64" |
| Drill Size Equivalent | 0.1719" |
| Finish | Bright |
| Flute Design | Spade Flute |
| Flute Direction | N/A |
| Flute Length | 9/16" |
| Flute Quantity | 2 |
| Material Madeof | Solid Carbide |
| Overall Length | 2" |
| Point Angle | 118° Point |
| Point Type | Conventional Point |
| Sets | No |
| Shank Size | 11/64" |
| Shank Type | Straight Shank |
| System Of Measurement | Fractional |
