Product Overview

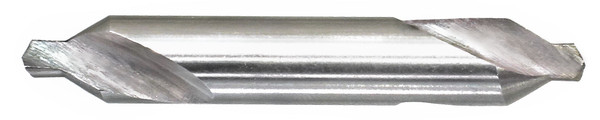

2 DRILL & COUNTRSINK 60DEG - 3500C
Solid Carbide Combination Drill & Countersinks (Center Drills) have strong shanks and flutes, making them ideal in difficult materials. They may also be used in high production applications where tolerance, finish, and machine down-times are considered.
Features
- Solid carbide construction for extreme rigidity and strength
- Plain type with single 60° chamfer
- Bright finish for added lubricity
- Double ended for twice the life
Applications
- For drilling a center hole when mounting a part in a machining center
Specifications
| Drill Size | 5/64" |
| Drill Size Equivalent | #2 |
| Finish | Bright |
| Flute Design | Spiral Flute |
| Flute Direction | Right hand |
| Flute Length | N/A |
| Flute Quantity | 2 |
| Material Madeof | Solid Carbide |
| Overall Length | 1-7/8" |
| Point Angle | 60° Point |
| Point Type | Center Drill Point |
| Sets | No |
| Shank Size | 3/16" |
| Shank Type | Straight Shank |
| System Of Measurement | Number |
