Product Overview

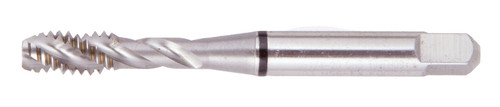

6-32 SPIRAL FLUTE BT TAP -2000PF
These taps are designed for machine tapping in a wide range of material groups, including difficult to machine materials such as stainless steel. The Nitro multi-application spiral flute tap improves thread quality, and aids in chip evacuation.
Features
- Made from premium grade HSS for extended life
- Available in plug geometry
- Spiral point is designed to eject chips through the bottom of the hole
- Bright finish for optimal lubricity
- Square shank for use with tap wrenches or powered machines
Applications
- Cutting threads in a wide variety of materials
- Cutting threads in through holes
- Cutting threads by hand or in powered applications
Specifications
| Finish | Bright |
| Flute Quantity | 3 |
| Material Madeof | High Speed Steel (M2) |
| Number Pieces | 1 PC |
| Overall Length | 2" |
| System Of Measurement | Machine Screw |
| Tap Chamfer | Bottoming |
| Tap Drill Size | #36 |
| Tap Hole Type | Blind Hole |
| Tap Length Of Thread | 11/16" |
| Tap Pitch Dia Limit | H3 |
| Tap Size | 6-32 |
| Tap Square Size | 0.11" |
| Tap Thread Type | NC |
