Product Overview

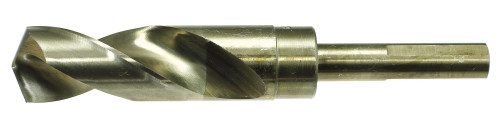

8PC IMP COB S&D DRILL SET 9/16-1 BY 16T
1000C series S&D Drills expand the size range capacity of a 1/2" portable drill chuck. Common flute and overall length for minimal adjustment during tool changes. Cobalt steel for drilling harder materials.
Features
- 1/2" reduced shank for use in standard drill chucks
- 135° split-point for self-centering
- Made with quality cobalt alloy for extra long life
- Bronze surface finish for long life
- 3-flats on shanks for better grip in handheld power tools
Applications
- Drilling large diameter holes
- Drilling in high strength materials
- Making holes with fixed spindle machines
Specifications
| Drill Size | 9/16" - 1" (by 16ths) |
| Drill Size Equivalent | Various |
| Finish | Bronze Oxide |
| Flute Design | Spiral Flute |
| Flute Direction | Right hand |
| Flute Length | Various |
| Flute Quantity | 2 |
| Material Madeof | Cobalt |
| Number Pieces | 8 PC |
| Overall Length | Various |
| Point Angle | 135° Point |
| Point Type | Split Point |
| Sets | Yes |
| Shank Size | 1/2" |
| Shank Type | 3-Flats, Reduced Shank |
| System Of Measurement | Fractional |
