Product Overview

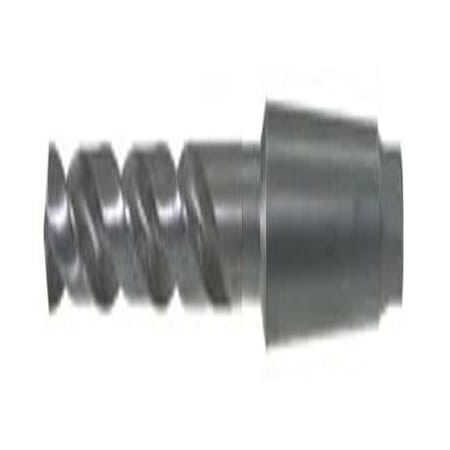

9/16,TAPER SHK DRILL #1 M.T SMALLER 1450
Taper Shank Drills have a tanged conical shank to fit directly into the tapered holes of drill press spindles, driving sleeves or sockets. 1450 series have smaller shanks. For general purpose use in a wide range of materials.
Features
- Made with premium grade HSS to last longer
- 118° conventional point for rapid penetration
- Black oxide surface treatment for improved life
- Taper shank is undersized according to American Standards
- Made in USA
Applications
- General purpose drilling
- Drilling large diameter holes
- Drilling with machines that require a morse taper shank
Specifications
| Drill Size | 9/16" |
| Drill Size Equivalent | 0.5625" |
| Finish | Black Oxide |
| Flute Design | Spiral Flute |
| Flute Direction | Right hand |
| Flute Length | 4-7/8" |
| Flute Quantity | 2 |
| Material Madeof | High Speed Steel |
| Morse Taper | 1 |
| Overall Length | 8-1/4" |
| Point Angle | 118° Point |
| Point Type | Conventional Point |
| Sets | No |
| Shank Size | MT1 |
| Shank Type | Undersize Taper Shank |
| System Of Measurement | Fractional |
