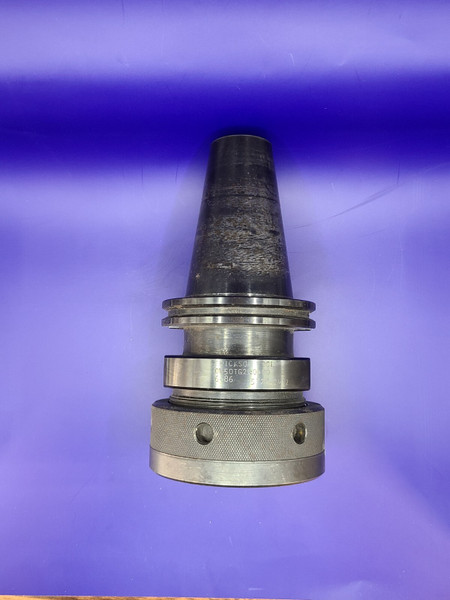

Erickson CAT50 TG200 Collet Chuck - CV50TG200400 - with 1-3/4" Collet

Erickson (Kennametal) CAT-50 V-flange collet chuck, TG200 series, 4.00 inch projection. Includes one 1-3/4 inch TG200 collet. Used, in good working condition, pulled from service. Ships from our shop in Independence, Iowa. Local pickup welcome.

Brand	Erickson (Kennametal)
Catalog Number	CV50TG200400
Factory Marking	5728-2412
Taper	CAT-50 V-Flange (ANSI B5.50) - also listed as CAT 50 / 50 Taper
Collet Series	TG200 single-angle (accepts up to 2.000")
Gage Length / Projection	4.00 in
Collet Included	1-3/4 in (1.750") TG200
Retention Knob / Pull Stud	NOT included
Condition	Used - good working condition

Fits: 50-taper machining centers - Haas VF-11 / VF-12 / VF-14 and EC-1600, Mazak, Okuma, Cincinnati Milacron, Mori Seiki, Fadal 50-taper, Giddings & Lewis, Kearney & Trecker.

Cross-reference: equivalent to Parlec C50-20SC4; comparable to Command, Lyndex-Nikken, Techniks, RapidHold and Collis CAT50 TG200 holders.

Why TG200: TG200 is the largest standard TG collet size in the CAT-50 line and is harder to find than TG100 or TG150. The included 1-3/4 inch collet is a large-format size that is not cheap to source separately.

Please note: no retention knob / pull stud is included - these are machine-specific and buyers normally supply their own.
